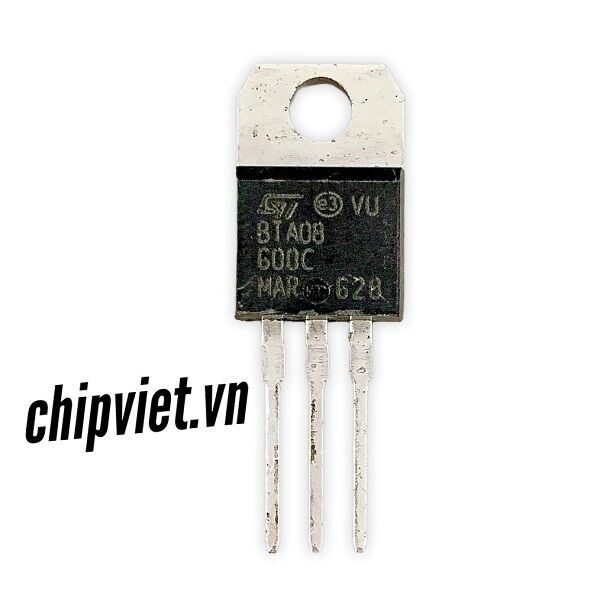

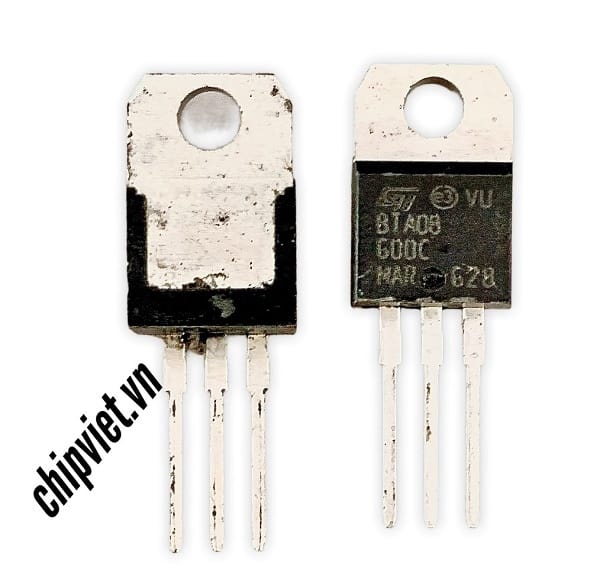

103554_101(0*101*0*0)_^1V1008~12A108*_
5,000₫
| Part Status | Active | |
|---|---|---|
| Triac Type | Standard | |
| Voltage – Off State | 600V | |
| Current – On State (It (RMS)) (Max) | 8A | |
| Voltage – Gate Trigger (Vgt) (Max) | 1.3V | |
| Current – Non Rep. Surge 50, 60Hz (Itsm) | 80A, 84A | |
| Current – Gate Trigger (Igt) (Max) | 50mA | |
| Current – Hold (Ih) (Max) | 50mA | |
| Configuration | Single | |
| Operating Temperature | -40°C ~ 150°C (TJ) | |
| Mounting Type | Through Hole | |
| Package / Case | TO-220-3 | |
| Supplier Device Package | TO-220AB |
