70,000₫

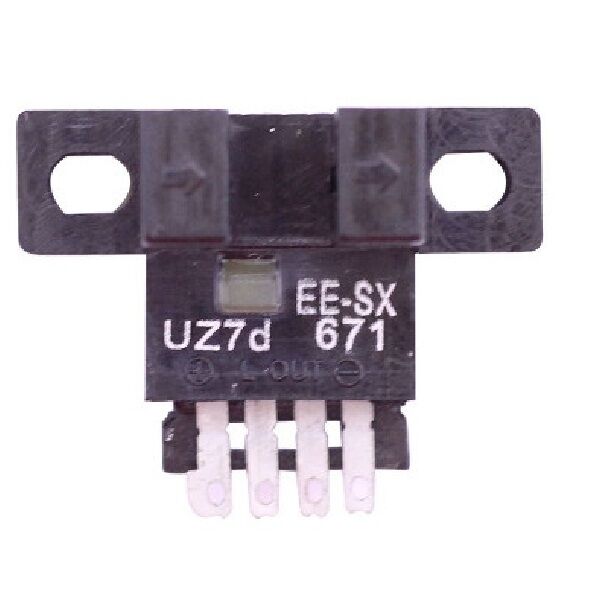

Thông số kỹ thuật cảm biến quang Omron EE-SX671 |
|
|
Type |
Grooved Type (L-shaped) |
|
Sensing distance |
5 mm |
|
Operation mode |
Dark-ON/Light-ON |
|
Differential distance elements |
0.025 mm max. |
|
Light source （Peak wavelength） |
Infrared LED (940 nm) |
|
Indicator |
Light indicator (red) |
|
Power supply voltage |
5 to 24 VDC ±10% (ripple (p-p)10% max.) |
|
Current consumption |
12 mA max. (L terminal open) |
|
Control output （Output type） |
NPN Open collector output |
|
Control output （Load power supply voltage） |
5 to 24 VDC |
|
Control output （Load current） |
100 mA max. |
|
Control output （Residual voltage） |
0.8 V max. (at 100 mA load current) |
